One waistband, five separate control tasks

Actually, “waistband system” is too broad for a technical agreement. It can hide five different tasks: outer web feeding, elastic delivery, inner web feeding, lamination and final seam formation.

Each task creates a different defect when it drifts. A web-tracking error shifts coverage. Elastic tension changes contraction. Lamination variation creates loose zones. A sealing fault turns an otherwise correct pant into a reject after nearly all material has already been added.

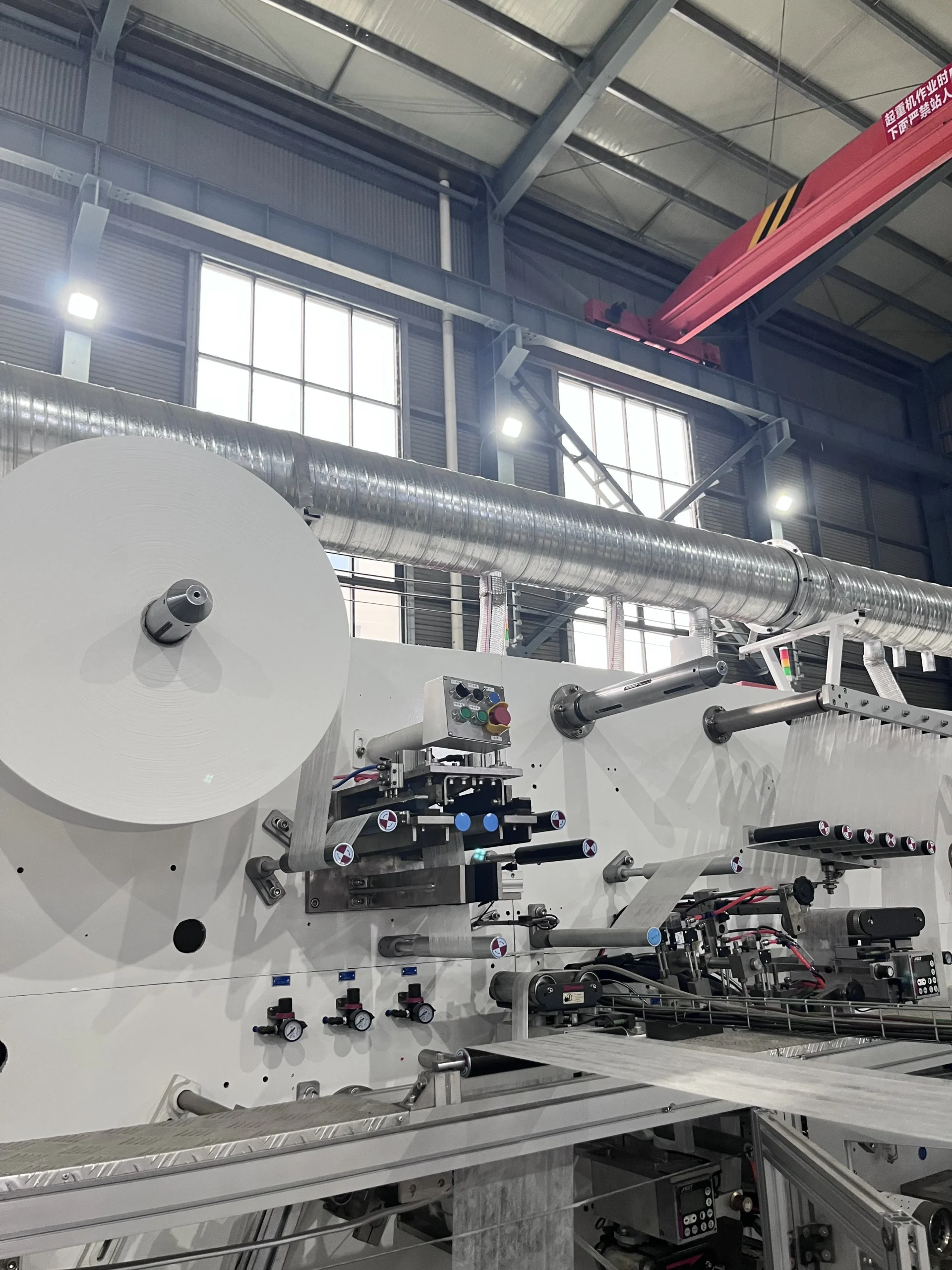

The outer waistband web sets the first reference

The outer nonwoven is the visible skin of the waist section. If it wanders before the elastic enters, every downstream correction becomes a compromise.

A roll can meet the ordered width and still behave differently because thickness, winding hardness or surface friction has changed. The material and the machine have to be evaluated together. Welldone’s material-matching guidance makes the same point: stable production depends on how raw material behaves inside the configured line, not only on the name printed on the data sheet.

More importantly, record what happens as the roll diameter decreases. A setting that is stable on a full roll but shifts near the core is not a stable production setting.

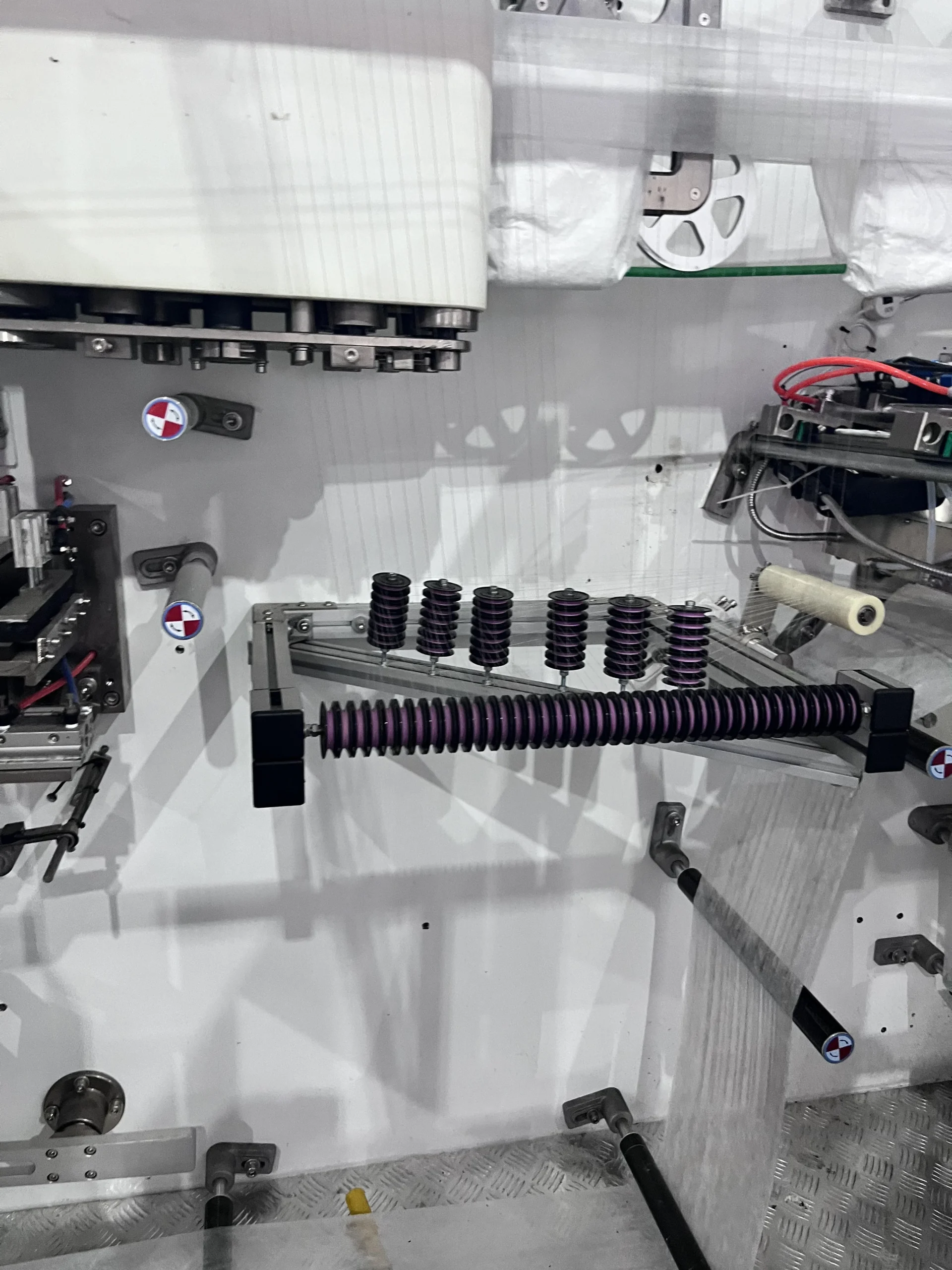

Elastic feeding controls fit before the waist is visible

The elastic rack is where a future fit problem first becomes measurable. Multiple strands travel through separate guide paths and then enter a moving nonwoven web.

Do not specify only the number of strands. Define the elastic grade, strand map, intended waist circumference, recovery test and allowed left-right difference. Without that product test, operators can adjust tension until the pant “looks right” while changing the fit from batch to batch.

The real question is not how many elastic packages the rack can hold. It is whether all active strands reach the lamination point with repeatable behavior across startup, acceleration, roll depletion and material replacement.

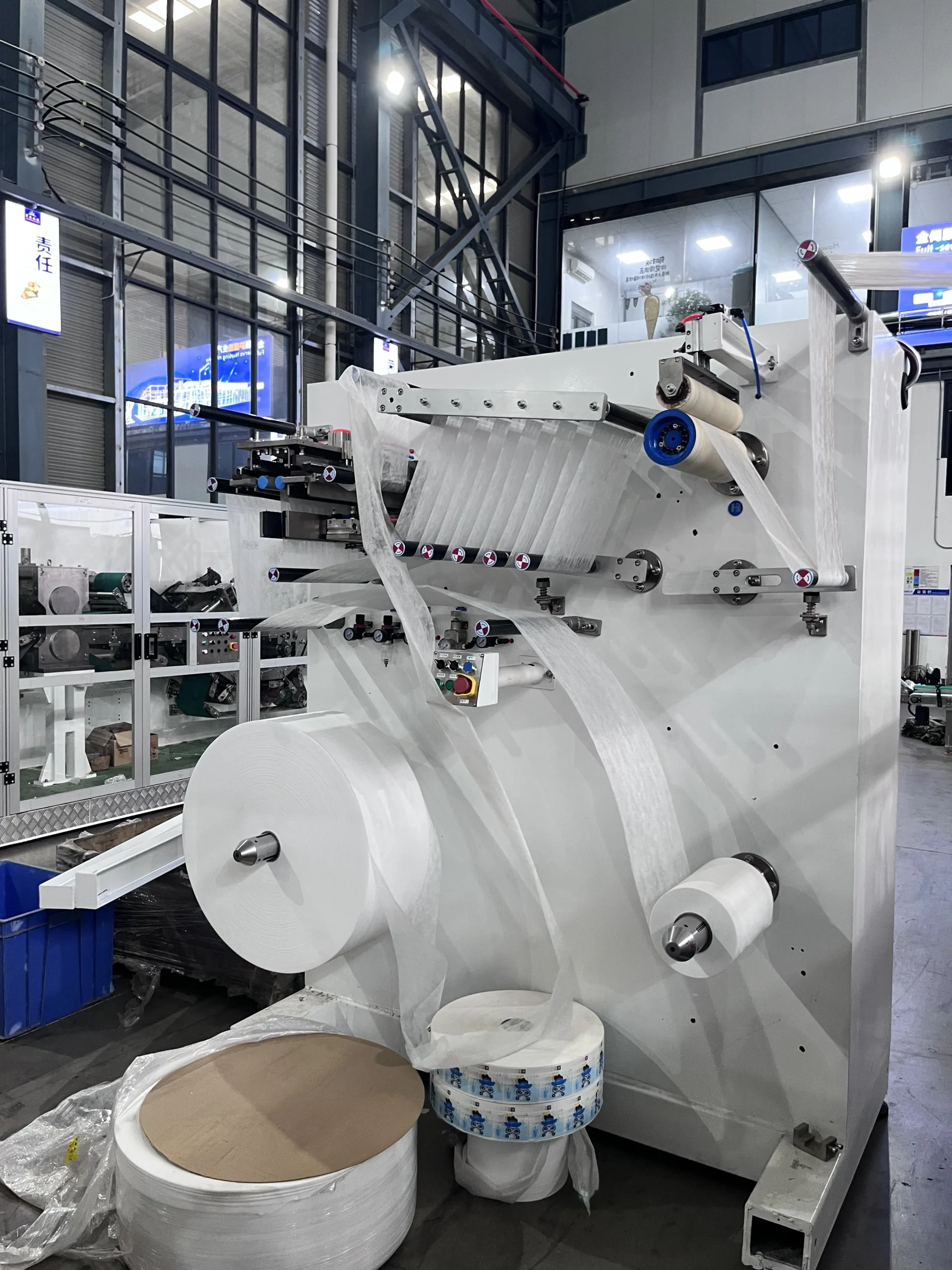

The inner web must cover the elastic without fighting it

The inner waistband web closes the elastic structure against the wearer-facing side. Its job is not merely to add another layer; it must cover the elastic zone while allowing the composite to contract evenly.

If the inner web is too narrow for the approved elastic map, strands can sit close to the edge. If it is miscentered, one side receives less coverage. If the feed behavior differs from the outer web, the two layers meet the lamination station with unequal strain and may wrinkle after release.

This is why the BOM must state the actual inner and outer nonwoven grades. “Soft nonwoven” is not enough information for a production recipe.

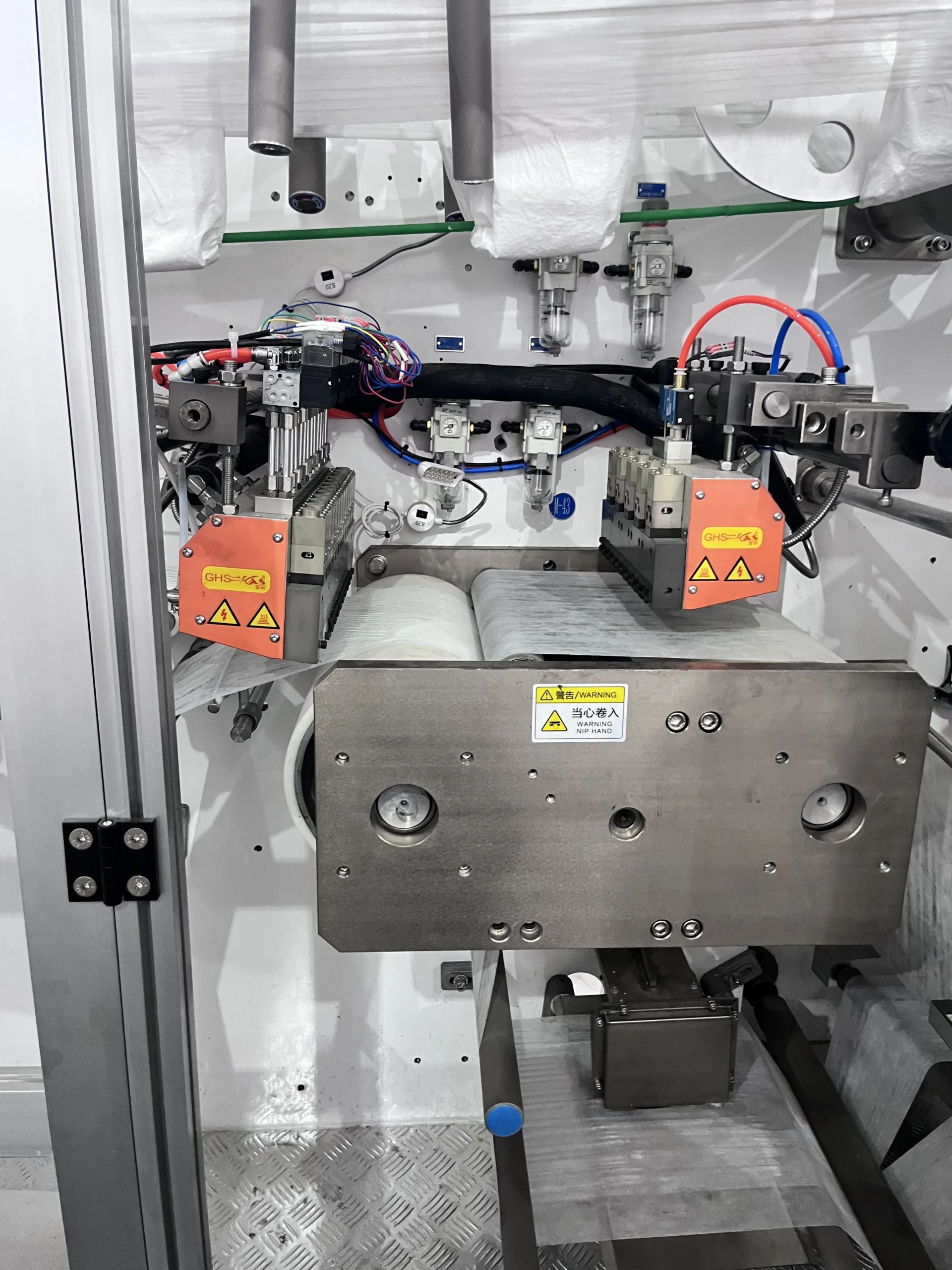

Lamination turns separate inputs into one elastic composite

I believe lamination should be inspected after contraction, not only while the web is flat. A flat composite can hide a loose channel that opens when the elastic relaxes.

The process must coordinate adhesive application, web alignment, nip pressure and line timing. The correct settings depend on the real nonwoven, elastic and adhesive combination. A recipe developed with substitute material may not transfer cleanly to the production BOM.

Welldone’s pull-up product page confirms that waist forming and elastic application are part of the line configuration. The technical agreement should go further by defining the finished composite test and the materials used during commissioning.

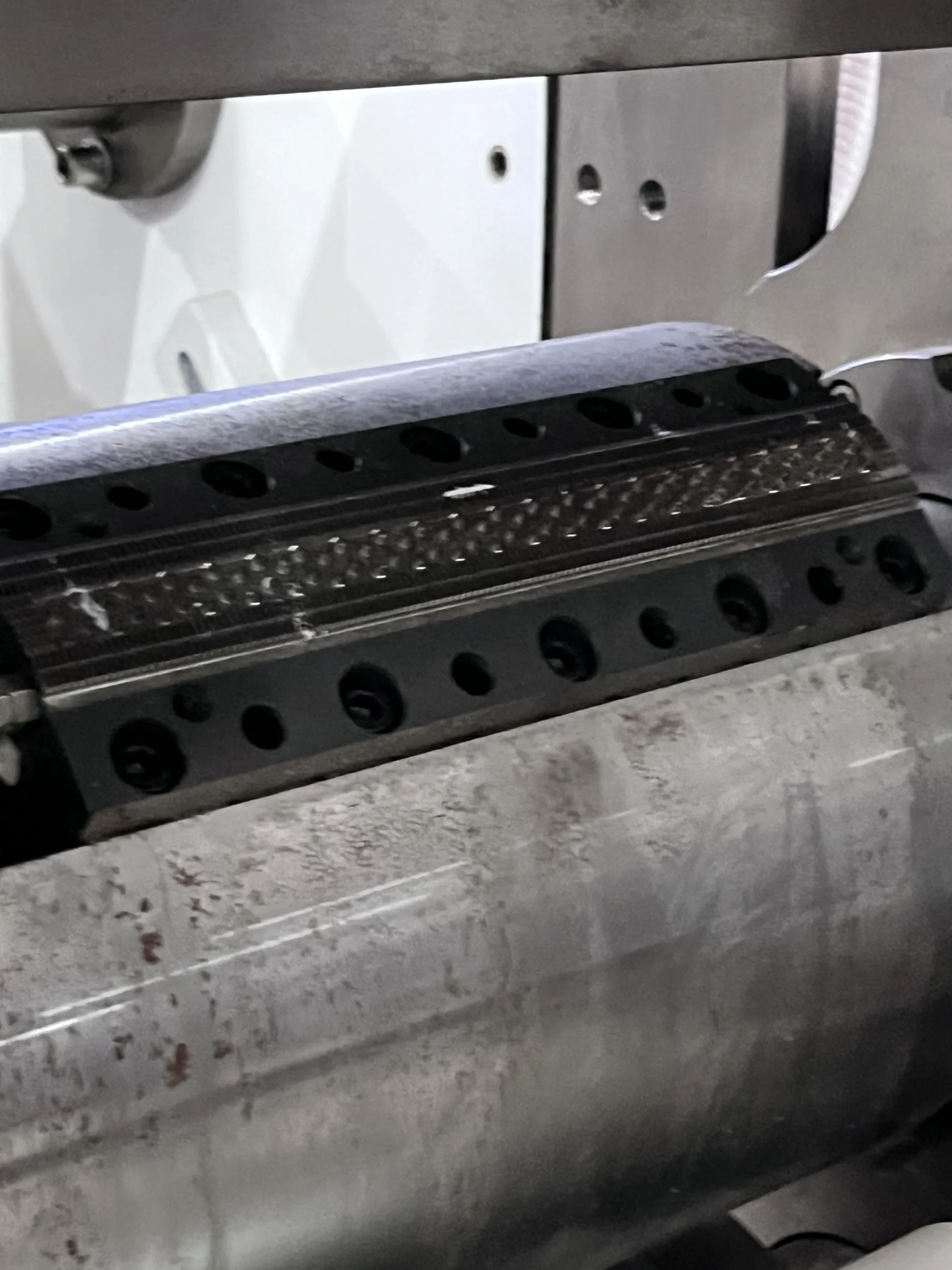

Side sealing tests the whole upstream chain

The side seam is the last major structural test of the waistband. If upstream layers arrive off-center or with uneven gathers, the sealing tool receives a different stack from one product to the next.

A seam can fail in more than one direction. It may open too easily, remain too hard to tear where tear-away behavior is intended, or form at the wrong position. These are product-definition questions as much as machine questions.

An empty-machine demonstration cannot prove seam performance. Use the production material stack and the agreed test method during trial running and acceptance.

Read the defect backward through the line

Operators often adjust the station nearest the visible defect. That is understandable, but it can move the problem rather than solve it.

The Part 1 structure guide explains why the product drawing must come before the machine scope. The same drawing becomes the troubleshooting map for this five-station chain.

Write the waistband specification as inputs and tests

A useful specification is measurable without pretending that one universal recipe exists.

• Approved product samples for every launch size.
• Inner and outer waistband material grades, widths and supplier data sheets.
• Elastic grade and strand-position drawing.
• Finished waist circumference and recovery test method.
• Allowed left-right difference and visible coverage criteria.
• Lamination inspection or peel method agreed with the material combination.
• Side-seam position and pass/fail test.
• Startup, steady-run and post-roll-change sampling points.

Acceptance should reproduce the difficult transitions

A steady sample taken after the line has settled does not cover the conditions that create many waistband defects. Include startup, speed changes, roll depletion, roll replacement and restart in the trial plan.

Use the same production-intent material grades that will run in the factory. Record the recipe, material lot and measurement method with each sample. If the product fails later, the team can separate material change from machine-setting change instead of guessing.

Welldone’s current baby care overview lists a platform yield of at least 98 percent and full-width vision with automatic rejection. These are platform statements. The project contract still needs to define which waistband defects are detected, how qualified rate is calculated and which materials are used during the run.

Related machines and support

Conclusion

The waistband is a synchronized material system. Outer web, elastic, inner web, lamination and sealing must be specified as one chain while each station remains measurable on its own.

If your waistband becomes uneven only after a roll change, which variable does your current acceptance record allow the team to isolate?
