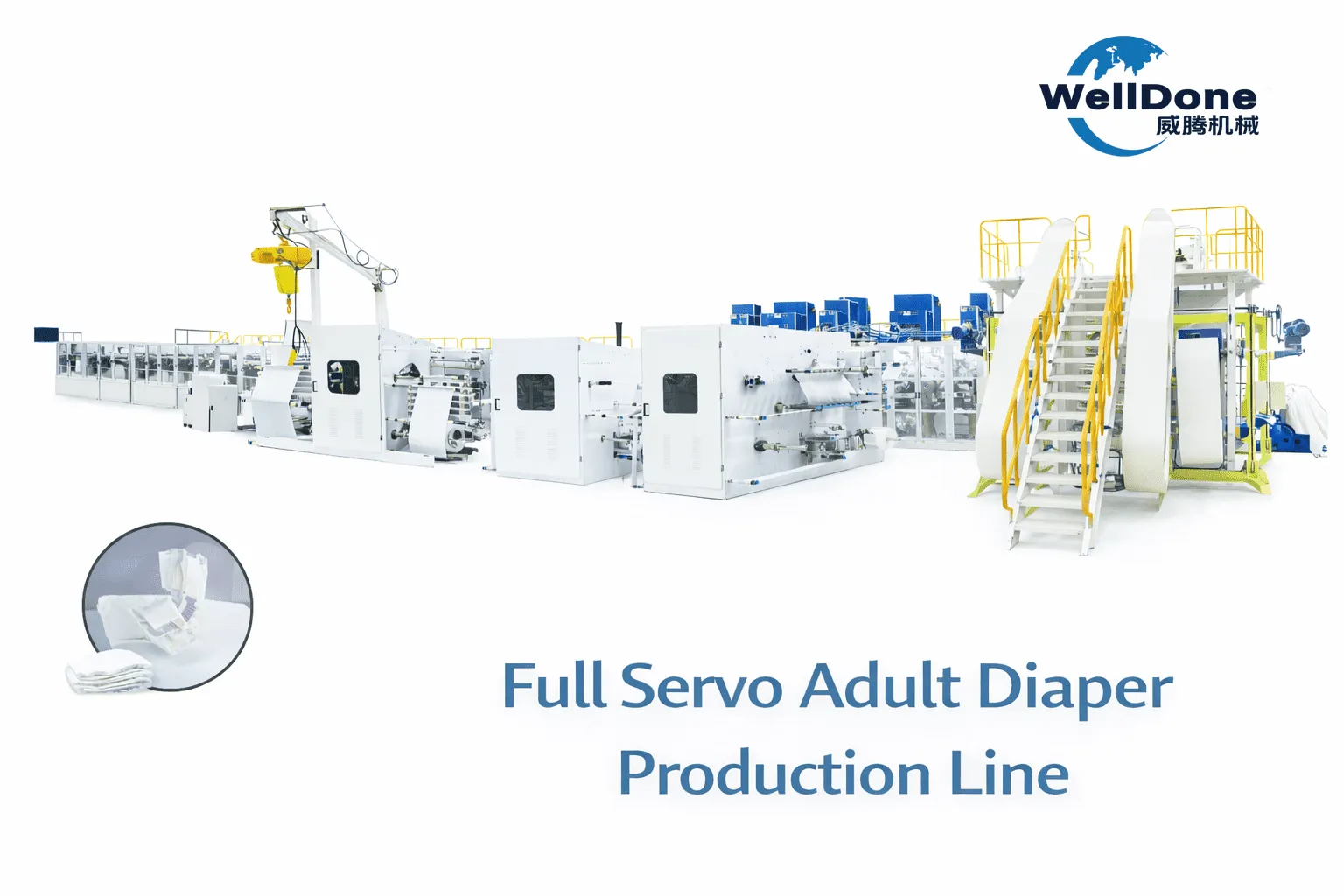

Frequency full servo Diaper Production Line A Practical Guide to Stable, Scalable Adult Diaper Manufacturing

(Model: WD-CRNK-220-FC)

The global demand for adult incontinence products continues to rise year after year. Aging populations, improved healthcare awareness, and changing lifestyles are pushing manufacturers to expand capacity while maintaining stable quality and controllable costs.

However, entering or upgrading an adult diaper production line is not as simple as buying a “high-speed machine.”
Real challenges usually come from long-term stability, product consistency, energy consumption, and operator dependence.

This is exactly where the Frequency full servo Adult Diaper Production Line (WD-CRNK-220-FC) shows its value.

This article explains how this production line works, why it fits real factory conditions, and what type of manufacturers it is best suited for—without technical jargon overload.

1. Why full servo Matters in Adult Diaper Manufacturing

Many traditional adult diaper machines rely heavily on mechanical transmission systems. While these machines can run fast, they often struggle with:

• Speed fluctuation during long production runs

• High scrap rates during material splicing

• Difficult fine-tuning when changing sizes

• High maintenance workload

The 3-shaft frequency drive system solves these issues by separating speed control, material tension, and forming accuracy into coordinated but independent systems.

In simple terms:

instead of forcing the entire machine to run at one rigid rhythm, each core shaft adjusts dynamically according to real-time production conditions.

This design is especially important for adult diapers, which involve thicker cores, higher SAP content, and more complex elastic structures than baby diapers.

2. Production Capacity Designed for Real Market Demand

The WD-CRNK-220-FC is designed for medium to large-scale adult diaper manufacturing, not for laboratory or demo purposes.

Annual Output Range

• 40–70 million pieces per year

This range fits:

• Regional brand owners

• OEM/ODM manufacturers

• Export-focused factories supplying hospitals, pharmacies, and distributors

Instead of chasing extreme speed numbers, this line focuses on stable daily output, which is what truly affects factory profitability.

3. Speed That Prioritizes Stability Over Theoretical Limits

• Designed speed: 200 pcs/min (M size)

• Stable operating speed: 120–150 pcs/min

Why not push higher?

Because adult diaper production is sensitive to:

• SAP distribution

• Core thickness uniformity

• Elastic alignment

• Tape and waistband positioning

Running slightly below the theoretical limit allows:

• Higher passing rates

• Lower glue waste

• Reduced machine vibration

• Longer component lifespan

This is a design choice based on long-term operation, not showroom performance.

4. Consistently High Passing Rate in Daily Production

One of the strongest indicators of a good production line is not speed—it is passing rate.

• Passing rate ≥97%

• Measured excluding glue applicator and auto splicing interruptions

This means:

• Less rework

• Less scrap material

• More predictable daily output

For factories using high-cost SAP and nonwoven materials, even a 1–2% improvement in passing rate translates into significant cost savings over a year.

5. Power System: Balanced Efficiency, Not Over-Consumption

Energy cost is often underestimated during machine selection.

Electrical Specifications

• Power supply: 3 phase, 5 wires (380V, 50Hz)

• Installed power: 400 KW

• Actual operating power: approx. 300 KW

Thanks to frequency-controlled drives:

• Power usage adjusts dynamically with load

• No unnecessary energy waste during speed changes

• Reduced heat generation inside the machine

This makes the line suitable for regions with:

• High electricity costs

• Power stability concerns

6. Compressed Air & Environmental Requirements

The WD-CRNK-220-FC is designed to operate in real factory environments, not ideal laboratory conditions.

Compressed Air

• Pressure: 0.6–0.8 MPa

• Consumption: approx. 5000 Nl/min

Environmental Conditions

• Temperature: 10–35°C

• Humidity: 55% RH ±5

• Noise level: ≤87 dB (measured at 1 meter)

These parameters allow stable operation in most industrial zones across Asia, the Middle East, Africa, and Latin America.

7. Machine Dimensions & Factory Layout Planning

Proper layout planning is critical before installation.

Machine Size

• 35.0m × 3.5m × 5.0m (L × W × H)

Required Working Space

• 45.0m × 12.0m × 7.0m (L × W × H)

This space includes:

• Material loading areas

• Operator movement paths

• Maintenance access

• Safety clearance

Before delivery, Welldone provides layout drawings to help customers plan:

• Power cable routing

• Air pipeline placement

• Material storage zones

8. Product Size Flexibility for Market Customization

Adult diaper demand varies significantly by region.

This production line supports:

• S / M / L / XL sizes

• Finished product dimensions:

  • Length: 450–1000 mm

  • Width: 350–880 mm

This flexibility allows manufacturers to:

• Serve hospital-grade products

• Produce retail consumer diapers

• Customize products for different countries


9. Product Structure Compatibility

The WD-CRNK-220-FC supports standard and advanced adult diaper structures:

Standard Structure

• Fluff core

• SAP

• Top sheet

• Back sheet

• Frontal tape

• Side tape

• Leg elastic

• ADL

Optional Structures

• Double core

• Waistband

• Standing cuff

• Fasten belt (T-type)

This modular compatibility makes future upgrades possible without replacing the entire line.

10. Logistics, Packaging & Delivery

• Origin: China

• Brand: WD Machinery

• Minimum order: 1 set

• Delivery time: approx. 150 working days after 30% deposit

• Packing:

  • Anti-rust oil

  • PE film full cover

  • Seaworthy wooden cases

Shipping requirement:

• 5 × 40HQ containers

11. Who Is This Production Line Best For?

This line is ideal for:

• Factories upgrading from semi-automatic lines

• Manufacturers expanding into adult incontinence products

• OEM suppliers targeting stable long-term contracts

It may not be suitable for:

• Extremely small trial production

• Short-term speculative projects

12. One-Stop Support from Welldone

Welldone is not only a machine supplier.

We provide:

• Installation & commissioning

• Operator training

• Raw material sourcing guidance

• Long-term spare parts support

• Production optimization consulting

You can explore more about our manufacturing solutions here:
👉 Adult Care Machines
https://cnwelldone.com/product-category/adult-care-machines

Related production lines include:

• Baby Care Machines
  https://cnwelldone.com/product-category/baby-care-machines

• Female Care Machines
  https://cnwelldone.com/product-category/female-care-machines

13. External Industry References

For readers interested in market background:

• WHO Aging Population Overview

• Global Incontinence Products Market Reports

• Healthcare Textile Manufacturing Standards

(You can later add authoritative links such as WHO or Statista reports for SEO authority.)

14. Final Thoughts

In adult diaper manufacturing, long-term success depends less on peak speed and more on stability, controllability, and scalability.

The WD-CRNK-220-FC Frequency 3-Shaft Drive Adult Diaper Production Line is built for factories that value consistent quality and predictable output—not short-term performance numbers.

If you are planning to invest, upgrade, or expand your adult diaper production capacity, choosing the right technical foundation makes all the difference.
